Insatech Marine can supply replacement spare parts for all existing filters. Our spare parts are quality tested and in compliance with a high quality standard. We can offer the entire product range which could be requested by an OEM or end-user. Regardless if its an automatic fitler, a duplex or a simplex filter you can find these kinds of filter an almost all kinds of vessels.
58RESULTATER
NULSTIL
Medium Pressure Filters
Parker GMF Series
The GMF Series from Parker is providing high-quality filtration of hydraulic systems because of the iprotect® technology. As well as a new design of the filter element, which ensures that the quality of the filtration is guaranteed. Furthermore, you can reduce the costs of ownership because of an improvement in productivity and profitability.
High Pressure Filter
Parker EPF Series
The EPF Series from Parker presents an inline hydraulic oil filter that is both environmentally friendly and extremely space-efficient, with a reusable element core. The filter can accommodate flow rates of up to 700 l/min (185 GPM) and handle maximum operating pressures of 450 bar (6,500 psi).
High Pressure in-line Filter
Parker EAPF1
The EAPF series of stainless steel in-line filters from Parker has been designed to offer exceptional hydraulic system filtration in the marine market. With a flow range of up to 120 l/min and a maximum pressure level of 690 bar, these filters provide high-quality filtration for even the most demanding applications. Available with ATEX.
Tank Mounted Suction Filter
Parker ATZ Series
The ATZ Series is a line of tank-wall mounted suction filters designed for submersion below oil level. These filters come equipped with a valve that automatically closes before element replacement. With a maximum flow of 300 l/min, the ATZ Series Suction Filters are an efficient and reliable option for your filtration needs
In-Tank Mounted Return Line Filters
Parker IN-AGB Series
The IN-AGB filter series from Parker is in-tank mounted return line filters, designed with a fast-acting bypass construction that has low hysteresis, ensuring a quick response time. Furthermore, it has a high dirt-holding capacity, ensuring effective filtration of particulates and impurities. Max. flow rates: 2400 l/min.
Tanktop Mounted Return Line Filters
Parker ETF Series
These low pressure filters is designed for mounting on tank tops and utilizes a reinforced co-polymer head with two return ports and a quick-release cover. The ETF Series provides a cost-effective solution for hydraulic systems with flows of up to 175 l/min
In-line Duplex Filters
Parker DF2035 Series
The DF2035 filter series is a lightweight and high-capacity in-line duplex filter. It offers several filtration media options and a high dirt holding capacity of up to three filter elements per reservoir. With 160mm square flange connections and a maximum flow rate of 600 l/min and maximum pressure of 8 bar.
Full Flow Spin-on Filters
Parker MXA Series
The Maxiflow series from Parker, are low pressure full flow spin-on filters, that can be used for either suction or return. Designed to provide quality protection for hydraulic or lubrication systems. Rated to handle a max. pressure of 10 bar and flow max. 360 l/min.

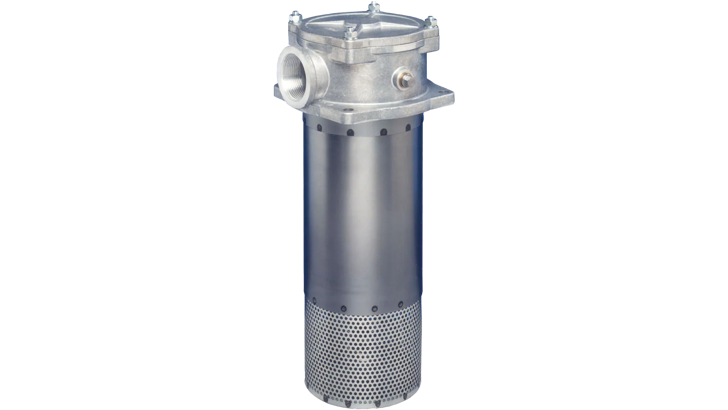

Tanktop Mounted Return Line Filters
Parker TTF Series
The TTF Series are tanktop mounted return line filters that provide pre-filtration through a magnet column and a quick response bypass with low hysteresis. Mmaximum pressure of 10 bar and a maximum flow of 500 l/min. Additionally, you have the option to add a second return port and a filling port to the filter cover.
No results found
Filtration
System Health Prevention
In these challenging markets it is key to use a proactive approach to maintenance to stay ahead of the competition. With issues such as extreme conditions, inspection challenges and workforce safety, on-line sensor and on-site testing technology provide an assured method of protecting assets and profits.
Selecting the correct filtration solution is vital to preserving the desired performance of your system. Preventing component deterioration or even failure depends on the quality of your filtration solution. Insatech is your single-source supplier to manage your total system health.
Your Single Source for Quality Filtration
We supply replacement spare parts for all existing filters. Our spare parts are quality tested and in compliance with a high-quality standard. We can provide any filter you need for example automatic, duplex or simplex for most vessels.
Our close filtration partners are the leading filtration suppliers worldwide. They have a powerful reputation, unparalleled breadth of products, and worldclass customer service. However, their greatest distinguishing benefits can be found in its Value Proposition. We believe that it takes more than our great products, competitive prices, and on-time delivery to satisfy customer demands. It takes a commitment to provide exceptional value.
