Flow Monitoring and MARPOL Compliance: The Importance of the BilgMon 488 Flow Switch

A Theoretical Insight into Flow Verification for 15 ppm Bilge Alarm Systems

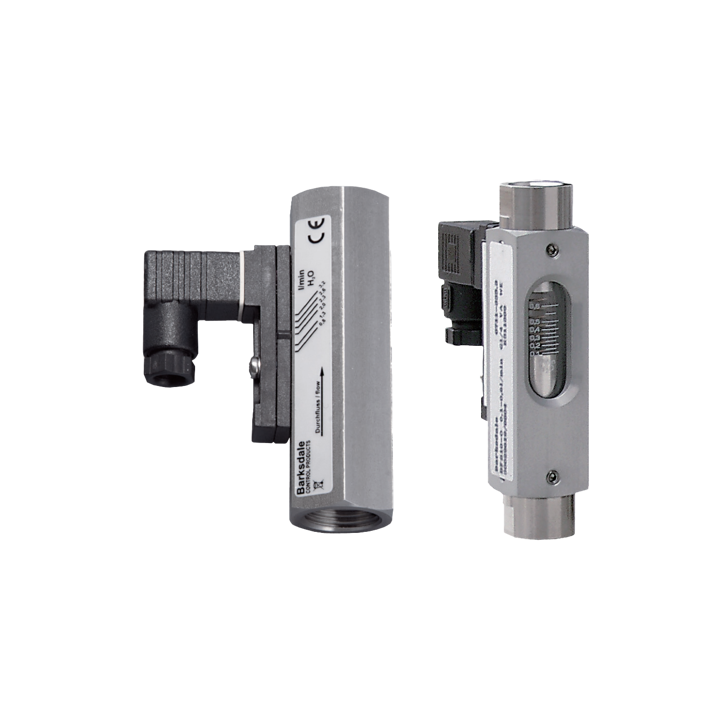

Flow verification plays an increasingly critical role in bilge water monitoring, particularly as environmental regulations tighten and Port State Control inspections become more rigorous. The BilgMon 488 Flow Switch, designed exclusively for use with BilgMon 488 Version 5, provides a new level of operational assurance by ensuring that the bilge alarm only analyses valid sample flow.

This article explains the theory behind flow switches, how they interact with modern bilge alarm systems, and why this feature is essential for compliance with MARPOL Annex I and IMO MEPC.107(49).

Explore related resources on the BilgMon 488 system:

View product pages:

Martin Søvind Jensen

Product Manager

Tel: +45 2761 4502

Email: Martin.Sovind@insatech.com

Write to Martin

1. Why Flow Monitoring Matters in Bilge Alarm Systems

A bilge alarm must always analyse a real and continuous water sample. If the sample stops flowing - due to pump issues, clogging, incorrect valve positions, or sensor blockage - the monitor may produce inaccurate readings.

Without a flow verification device, the bilge alarm could:

Analyse stagnant water
Display incorrect oil ppm levels
Fail to detect pollution risks
Generate misleading compliance logs

This exposes the vessel to significant regulatory and environmental risks.

The flow switch eliminates these risks by confirming that actual water flow is present before turbidity measurement is processed.

2. The Role of a Flow Switch: Theoretical Function

A flow switch detects whether a liquid is moving through a pipe. When installed upstream of the SENSOR unit, it signals to the MASTER unit whether:

Flow is present → measurement allowed
Flow is absent → measurement halted, alarm triggered

The switch essentially acts as a “sample verification gate,” ensuring the BilgMon 488 only analyses a valid sample stream.

This is particularly important in optical turbidity systems like the BilgMon 488, where stable flow ensures consistent optical density readings.

3. Exclusive Compatibility with BilgMon 488 Version 5

The BilgMon 488 Version 5 introduces a dedicated flow sensing input on the MASTER unit. Earlier versions (e.g., Version 4) do not support this signal type.

Key advantages of Version 5 with flow switch integration include:

Accurate “No flow” detection
Alarm classification consistent with other system alarms
Full logging of no-flow events in the system memory
Improved compliance documentation for inspections
Expanded operational reliability

For more details, see:

Introducing BilgMon 488 Version 5

4. Flow Switches and MARPOL Annex I Compliance

Under MARPOL Annex I, vessels must prevent accidental oil discharge into the sea. The 15 ppm bilge alarm is the core instrument for demonstrating compliance.

A flow verification device helps maintain regulatory integrity by ensuring the alarm only operates with valid data.

Relevant areas of MARPOL compliance related to flow switches include:

Requirement for correct piping arrangements and proper flow into bilge alarms
Ensuring the automatic stopping device (ASD) activates only when real ppm measurements exceed 15 ppm
Avoiding false alarms caused by lack of sample flow
Maintaining accurate recordings in the Oil Record Book (ORB)
Demonstrating system integrity during PSC inspections

A flow switch strengthens the ship’s ability to comply with these rules.

5. The Role of the Flow Switch in MEPC.107(49) Compliance

IMO MEPC.107(49) outlines the performance standards for 15 ppm bilge alarms. While it does not require a flow switch specifically, it mandates:

Accurate turbidity measurement
Consistent sampling conditions
Reliable alarm activation
Proper function of the ASD
Full data recording

The flow switch directly supports these requirements by ensuring measurement conditions remain stable and valid.

Ships built after 2005 must comply with MEPC.107(49), making the flow switch a valuable addition to achieve better operational integrity.

Learn more in our regulatory article:

Stay Compliant: Alarm Integration and Regulatory Requirements for the BilgMon 488

6. Flow Verification and Port State Control (AMSA & Global PSC)

Authorities such as AMSA (Australian Maritime Safety Authority) place strong emphasis on validating oily water separator performance during Port State Control inspections.

PSCOs often check:

That effluent samples flow correctly to the oil content monitor
That the ASD triggers when the ppm limit exceeds 15
That logs contain “No flow” or similar messages when flow is interrupted

With the BilgMon 488 Flow Switch installed, the MASTER unit:

Displays “No flow”
Triggers the corresponding alarm
Stores the event in the log for compliance documentation

This reduces the risk of non-compliance findings, delays, or detention.

7. How the Flow Switch Enhances Operational Safety

Prevents incorrect readings

Only real-flow samples are measured.

Strengthens environmental protection

Reduces the risk of accidental discharges caused by faulty sampling.

Improves system reliability

Detects blockages, pump failures, or piping issues immediately.

Supports proactive maintenance

Alarms help crew identify flow issues early - before they become operational problems.

Provides clean documentation for PSC and class audits

Logged events provide a robust compliance trail.

8. Summary: Why the Flow Switch Is a Key Upgrade

The BilgMon 488 Flow Switch is more than an accessory - it is an important component that supports compliance, system reliability, and environmental protection.
It ensures that the BilgMon 488 Version 5 operates with full sample integrity and provides reliable alarm handling, backed by rigorous log data.

Recommended for:
